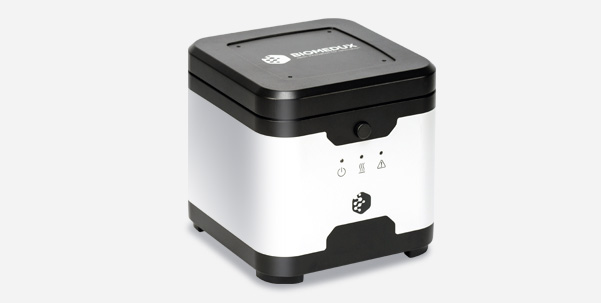

The DuxCycler is allows simultaneously 25 samples of nucleic acids to amplify.
The compact dimension and various functions are adopted in order for personal use of the PCR system.
Small and Light.
The affordable low-cost device of the conventional PCR system.
Compatible Windows OS, Mac OS and Android OS.
Maximally 8 DuxCyclers can be operated with 1 personal computer.
PCR protocol can be edited and stored in the smart device by a simple text editor.
Temperatures of lid and chamber well of the DuxCycler are recorded in real time.

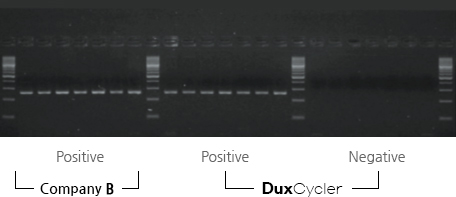

Comparative Experiment : DuxCycler & Company B

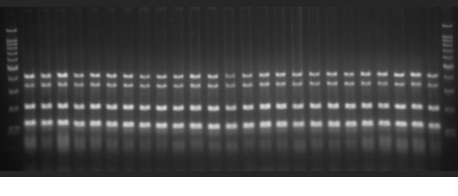

DuxCycler 25 Wells Validation Test
| Physical | Height | 150mm |
|---|---|---|
| Width | 150mm | |
| Length | 150mm | |
| Weight | 1.5kg |
| Thermal Performance | Temperature Accuracy | ±0.2°C |
|---|---|---|
| Temperature Uniformity | ±0.2°C | |
| Over Shoot | <0.5°C | |
| Ramp Rates | 2.5°C/sec (Heating) 1.5°C/sec (Cooling) |
|
| Chamber well Temp. | 4~100°C | |
| Lid Temp. | 25~110°C |
| Reaction Tubes | Samples per Instrument | 25well |
|---|---|---|
| Reaction Volume | 0.2mL tube |
| Operation | Heating Method | Peltier |
|---|---|---|
| Cooling Method | Peltier /Air cooling | |
| Input Voltage / Consuming Power | 110~220V/120W | |
| Status Notification(LED) | Blue-Normal operation Red-Failure Green-Waiting |
